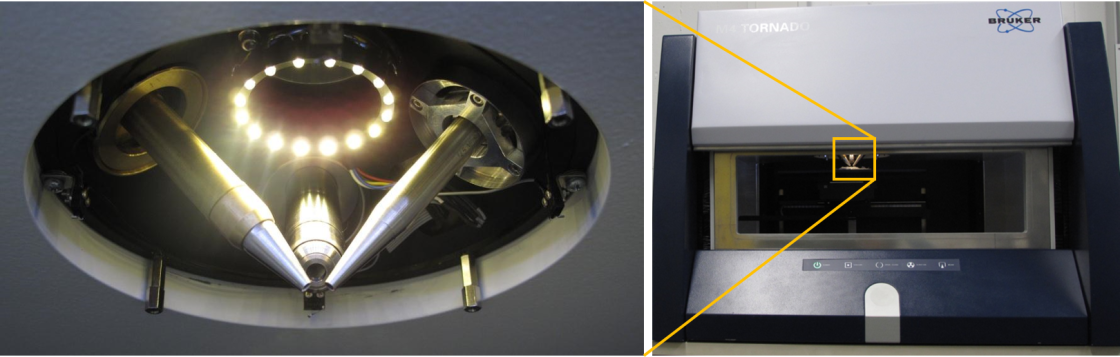

M4 Bruker tornado
|
Instrument data |
Modified M4 Bruker Tornado |
|
Source |
Rh microfocus X-ray tube, 50 V, 1000 µA |
|
Detectors |
2 SDD |
|
Optics |
Polycapillary full lens for excitation, polycapillary half lens attached to one detector |
|
Optical microscope |
10x and 100x magnification |
|
Experimental parameters |
|
|
Energy range |
2 keV – 30 keV (0.5 keV – 50 keV) |
|
Lateral spot size |
~38 µm FWHM @ Fe K fluorescence |
|
Depth resolution |
~25 µm FWHM @ Cu K fluorescence |
|
Maximal sample size |
600 x 400 x 125 mm³ |
|
Maximal scan range |
200 x 160 x 125 mm³ |
|
Environment |
Controlled prevacuum (minimum: 1 mbar), air |
|
Stage modus |
100 mm/s continuous scan / step-by-step |
|
Lab specification |
Temperature and humidity controlled environment |
