LiXEdrom@OPUS

XES, XAS, RIXS, micro-jet station at the Open Port beamline for User Station /UE51_PGM-1

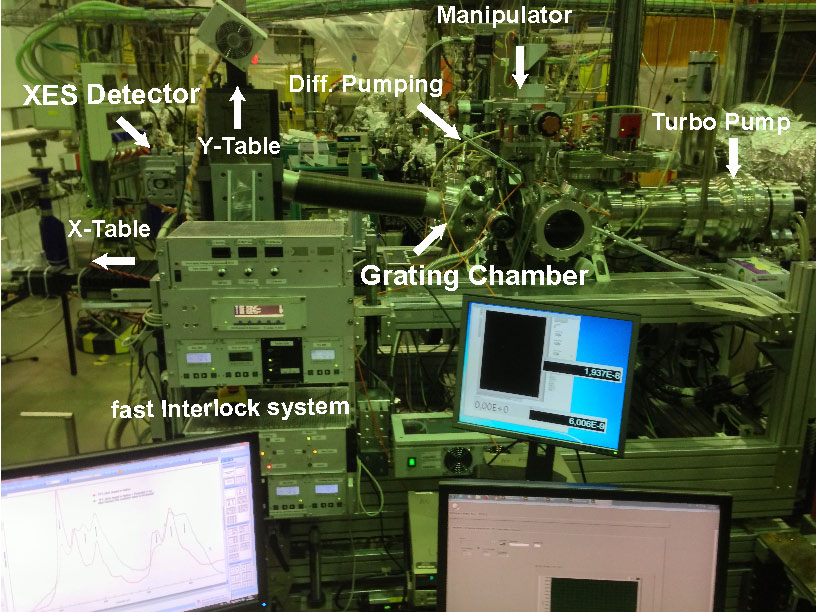

The LiXEdrom station, when connected to the UE51-PGM1  beamline, is capable of undertaking soft X-ray spectroscopy on liquid samples.

It can take measurements of X-ray absorption spectroscopy (XAS) via the detection techniues of TEY, TFY, PFY and transmission mode, and of resonant inelastic X-ray scattering (RIXS).

A variety of liquid samples can be measured, i.e. micro-jet, flat-jet, flow cell, electrochemical cell and transmission cell. Solids can be investigated as is without any additional treatments.

LiXEdrom is equipped with a customized data aquisition (DAQ) program based on Igor Pro software. Various devices, including beamline, keithley, keysight, sample manipulator, biologic potentiostat, and camera (for RIXS), are integrated into the DAQ program for simultaneous measurements.

Fast XAS scan is available. A scan of 40 eV range takes less than 2 mins.

When the beamline parameter and RIXS detector are carefully tuned, high RIXS spectral resolution can be achieved, see the N2 vibronic features below.

Selected Applications:
  • Investigate Hydrogen-bond network and Hofmeister effects in aqueous solutions
  • Determine interfacial electronic properties (electron delocalization) at the solute-solvent interface
  • Observe of electronic structure changes of catalysts in solution and electrolytes along the reaction path
  • Investigate the surface chemistry of nanoparticles in solution activated by different surfactants
  • State of the art in situ and operando spectrochemical investigation of catalytically active materials

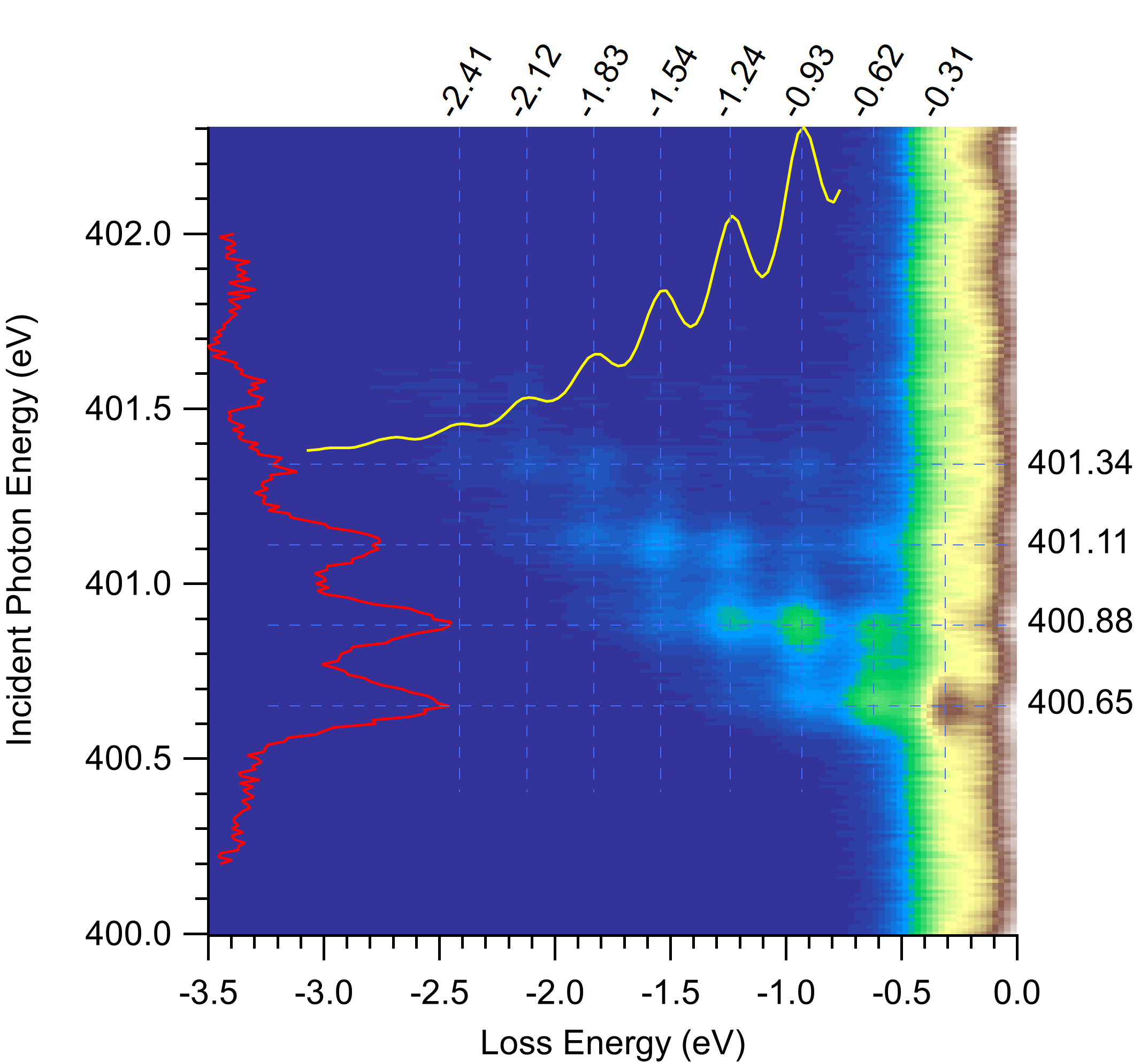

N2 RIXS map. The elastic feature is set to zero loss energy.

N2 RIXS map. The elastic feature is set to zero loss energy.


Methods

REXS, RIXS, EXAFS, NEXAFS

Remote access

not possible

Instrument data

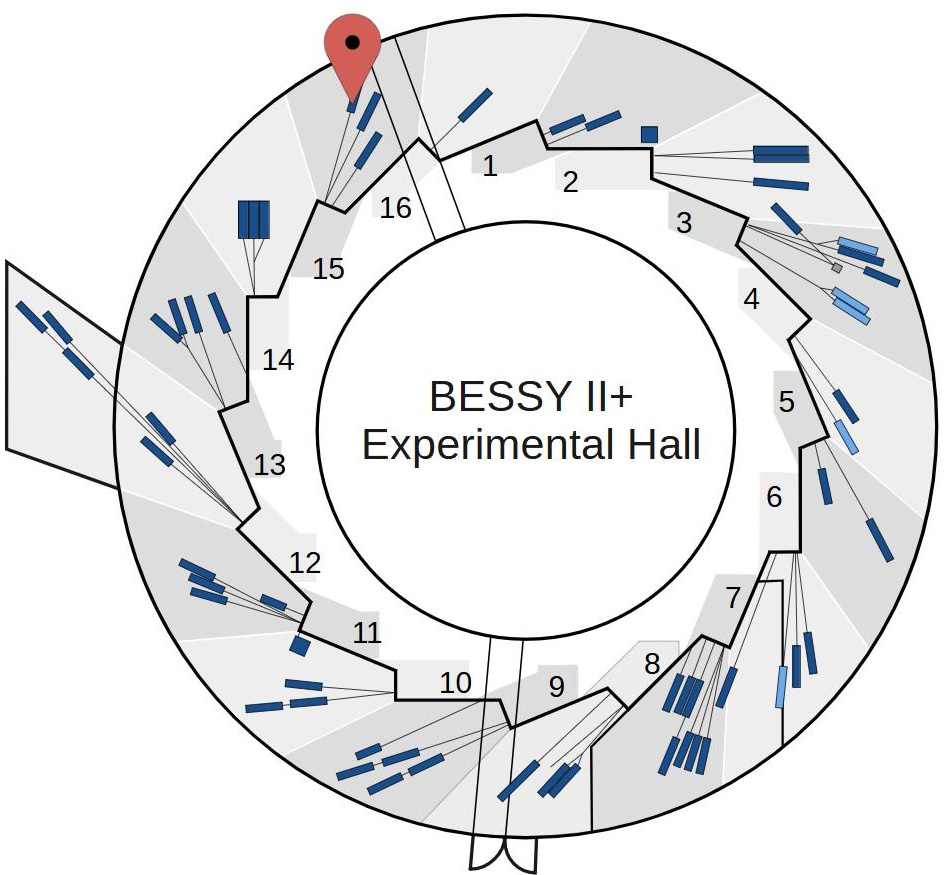

Location (Pillar) 16.2
Phone (~49 30 8062-) 14835
Source UE51
Beam availability 12h/d
Monochromator PGM
Energy range (at experiment) 100 - 1500 eV
Energy resolution 50 - 300 meV
Flux 10^9 - 10^13 /sec
Polarisation linear and circular
Focus size (hor. x vert.) 100 x slit
Temperature range Room temperature
Pressure range Operating pressure in main chamber: 1-3 x 10-5 mbar;
detector chamber: 10-8 mbar

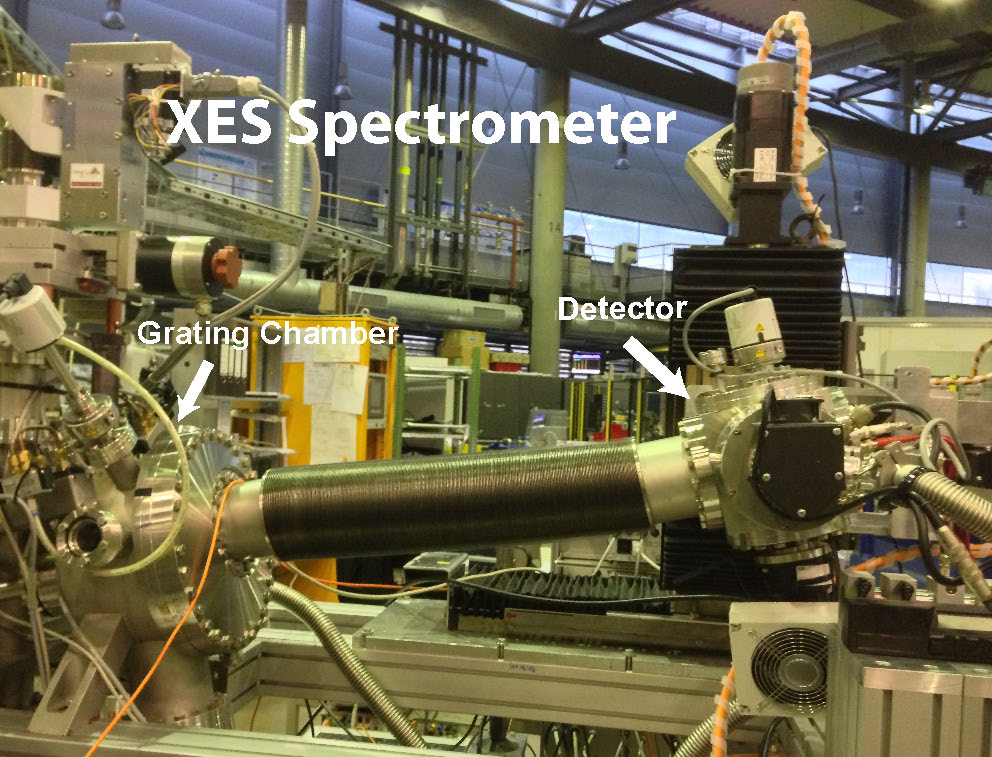

Detector CCD camera coupled with MCP stack and Fluorescence Screen
Manipulators high precision CF 100 manipulator
Sample holder compatibility No compatibility – everything is unique
Additional equipment o micro-jet
o flat-jet (two nozzles/ chip nozzle)
o flow cell (tripled)
o catalytic cell (three electrode setup)
o transmission cell
o transfer from glovebox into vacuum
o multiple pumps (HPLC, syringe, peristaltic)
o biologic potentiostat
Additional information



updated 06/2026
