U49-2_PGM-1
U49-2_PGM-1 Undulator PGM horizontal polarisation
This beamline has high photon flux, small focus spot, and moderate energy resolution. It is dedicated to studies of various soft X-ray spectroscopies.

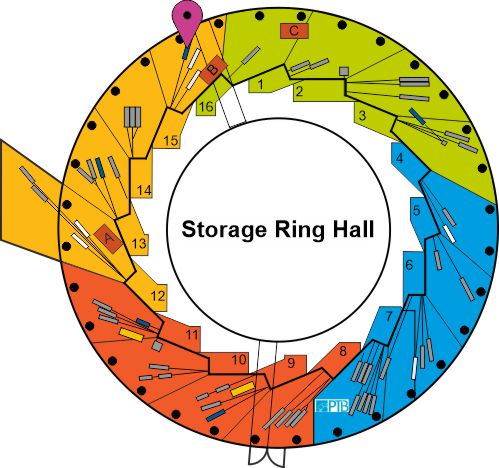

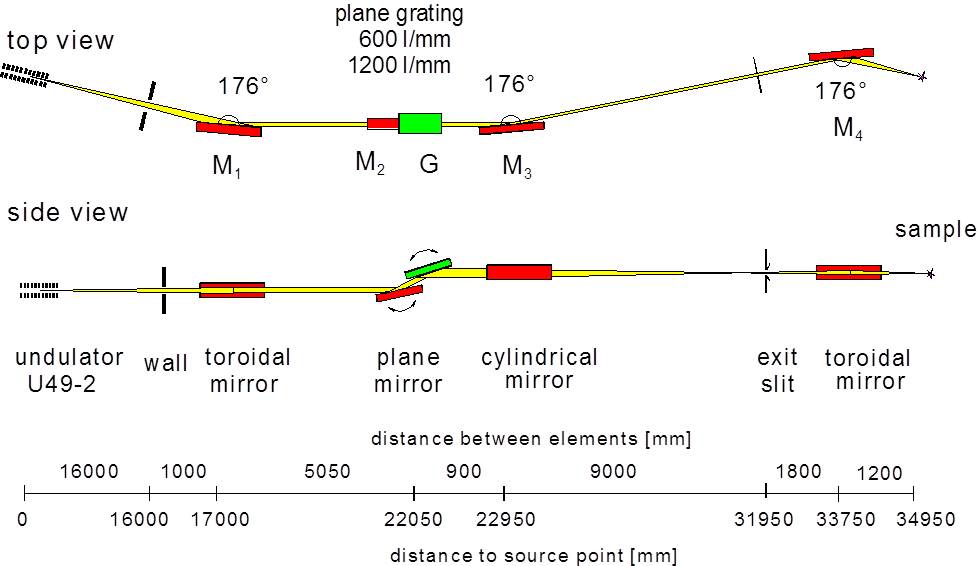

| Beamline data | |
|---|---|
| Segment | H15 |
| Location (Pillar) | 16.2 |
| Source | U49-2 (Undulator) |
| Monochromator | PGM-1 |
| Energy range | 85 - 1600 eV |

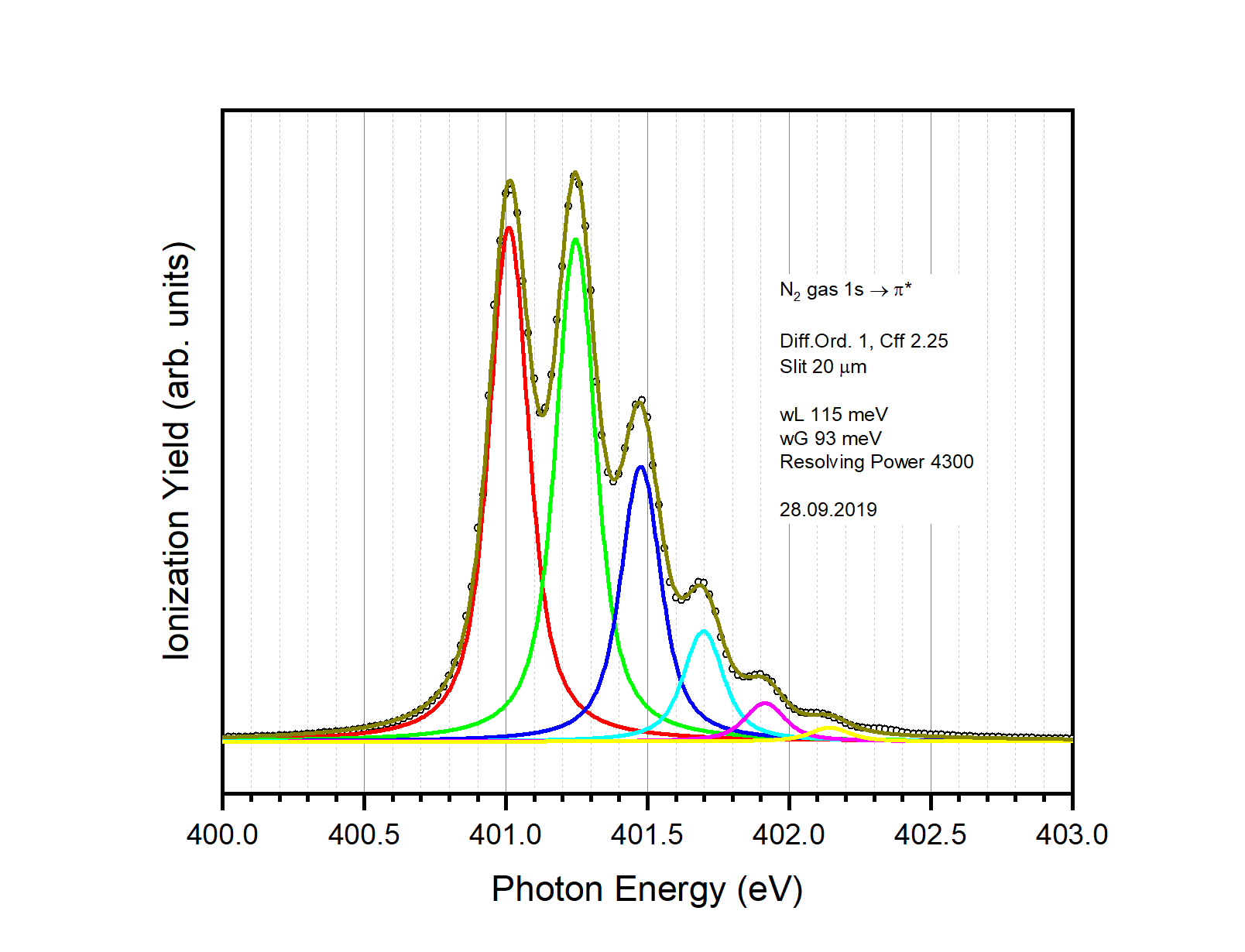

| Energy resolution | Energy and slit dependent, resolving power 4300 at 400 eV and slit 20 µm |

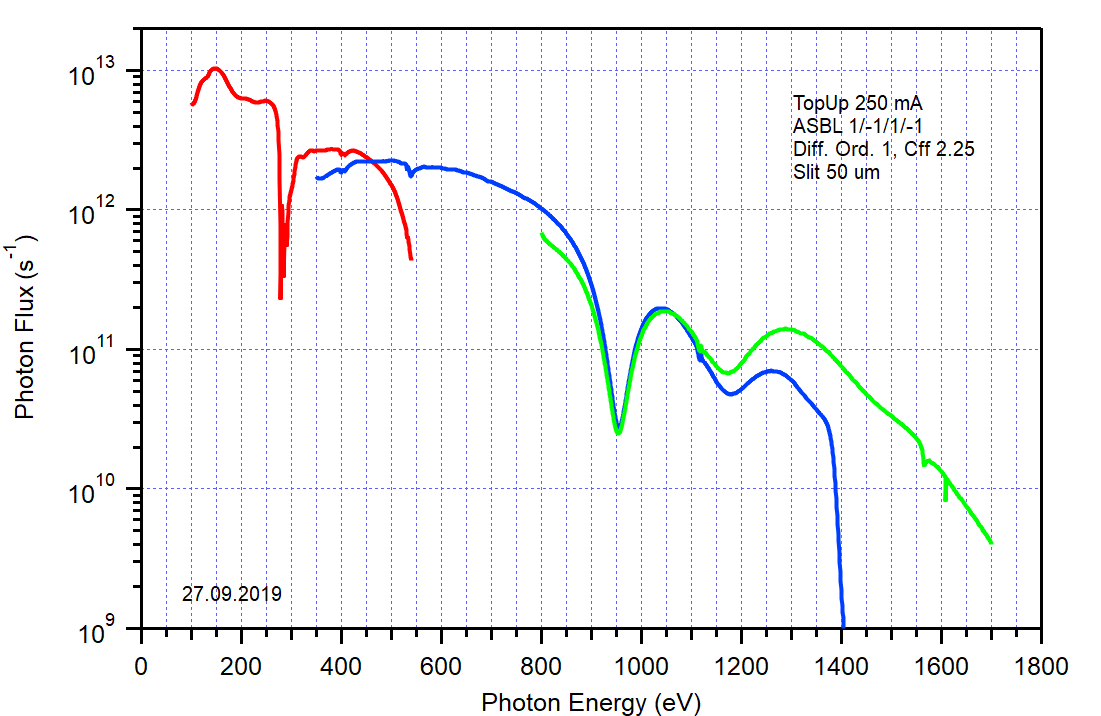

| Flux | see the flux curve below |
| Polarisation | horizontal |
| Divergence horizontal | 0.4 mrad |
| Divergence vertical | 0.2 mrad |

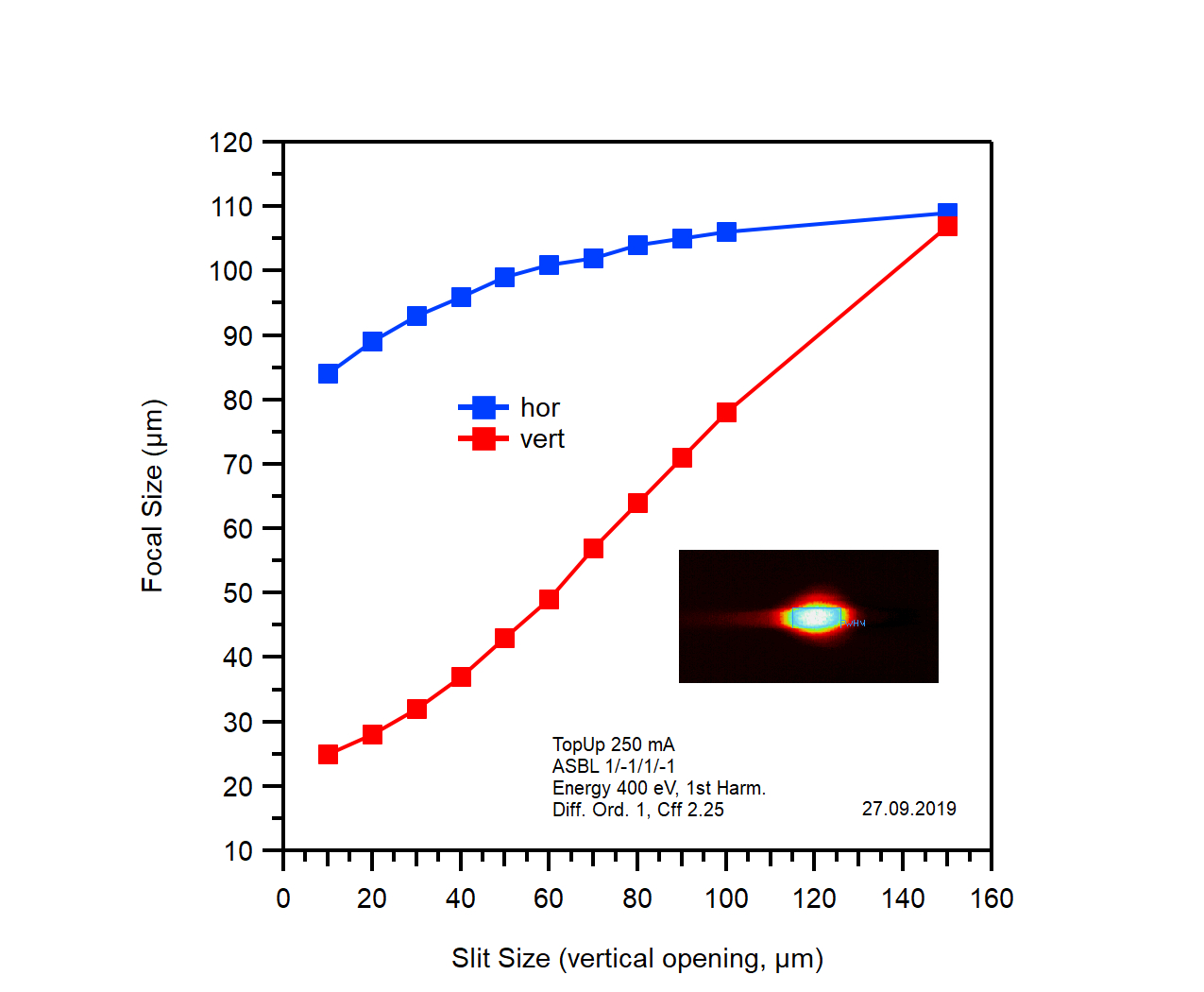

| Focus size (hor. x vert.) | slit dependent, see the "focal size" figure below |
| User endstation | possible |
| Distance Focus/last valve | 944 mm |
| Height Focus/floor level | 1417 mm |
| Beam availability | 12h/d |
| Phone | +49 30 8062 14835 |
| Applicable station(s) | |
| GELEM-PEEM | preparation: 300 – 3000 K measurement: 300 K |
| User station | |
| ALICE II | 10 - 475 K |
U49-2_PGM-1 is an "open-port" beamline without a permanent experimental station. User groups can connect their own instruments or one of the flexible HZB end stations to the beamline.
