UE52_PGM CoESCA
Soft X-ray undulator radiation variable polarization with PGM for CoESCA
The UE52_PGM CoESCA is an undulator beamline with a plane-grating monochromator delivering soft X-ray radiation with variable polarization for the Coincidence ESCA Experiment.
| Station data | |
|---|---|
| Temperature range | ~30 - 1000 K |
| Pressure range | 2 · 10-10 mbar |
| More details | CoESCA |
| Beamline data | |
| Segment | H09 |

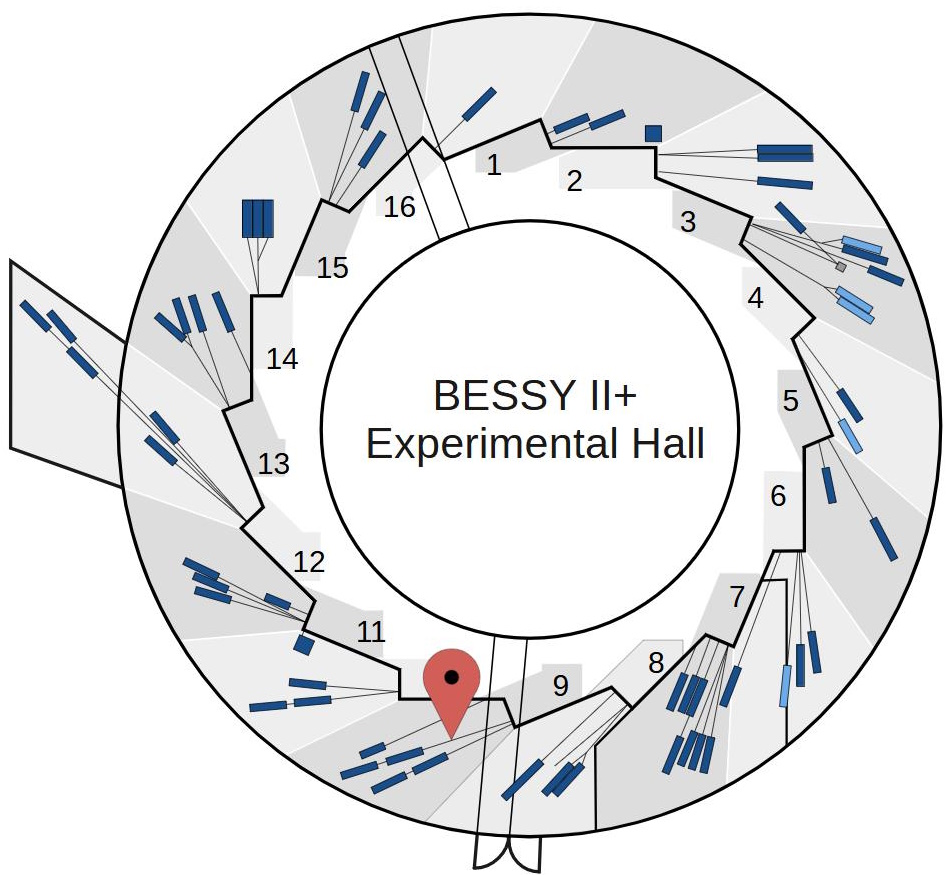

| Location (Pillar) | 11.1 |
| Source | UE52 (Elliptical Undulator) |

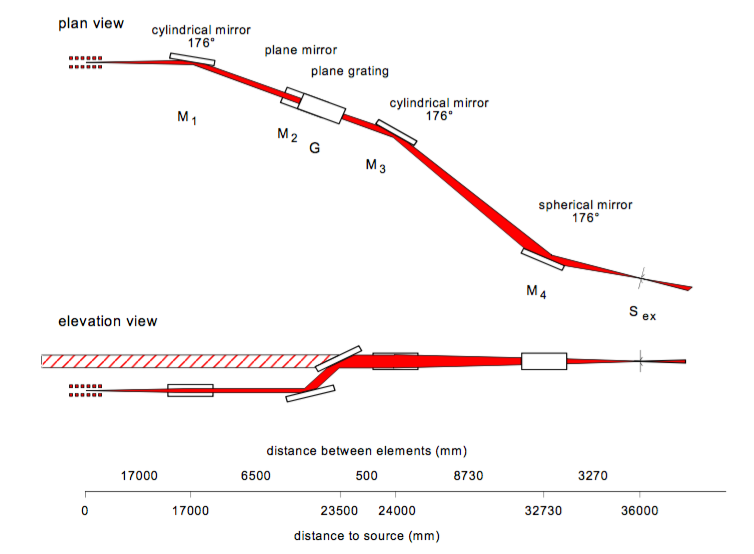

| Monochromator | PGM |
| Energy range | 115 - 1600 eV |
| Energy resolution | > 10000 at 400 eV |

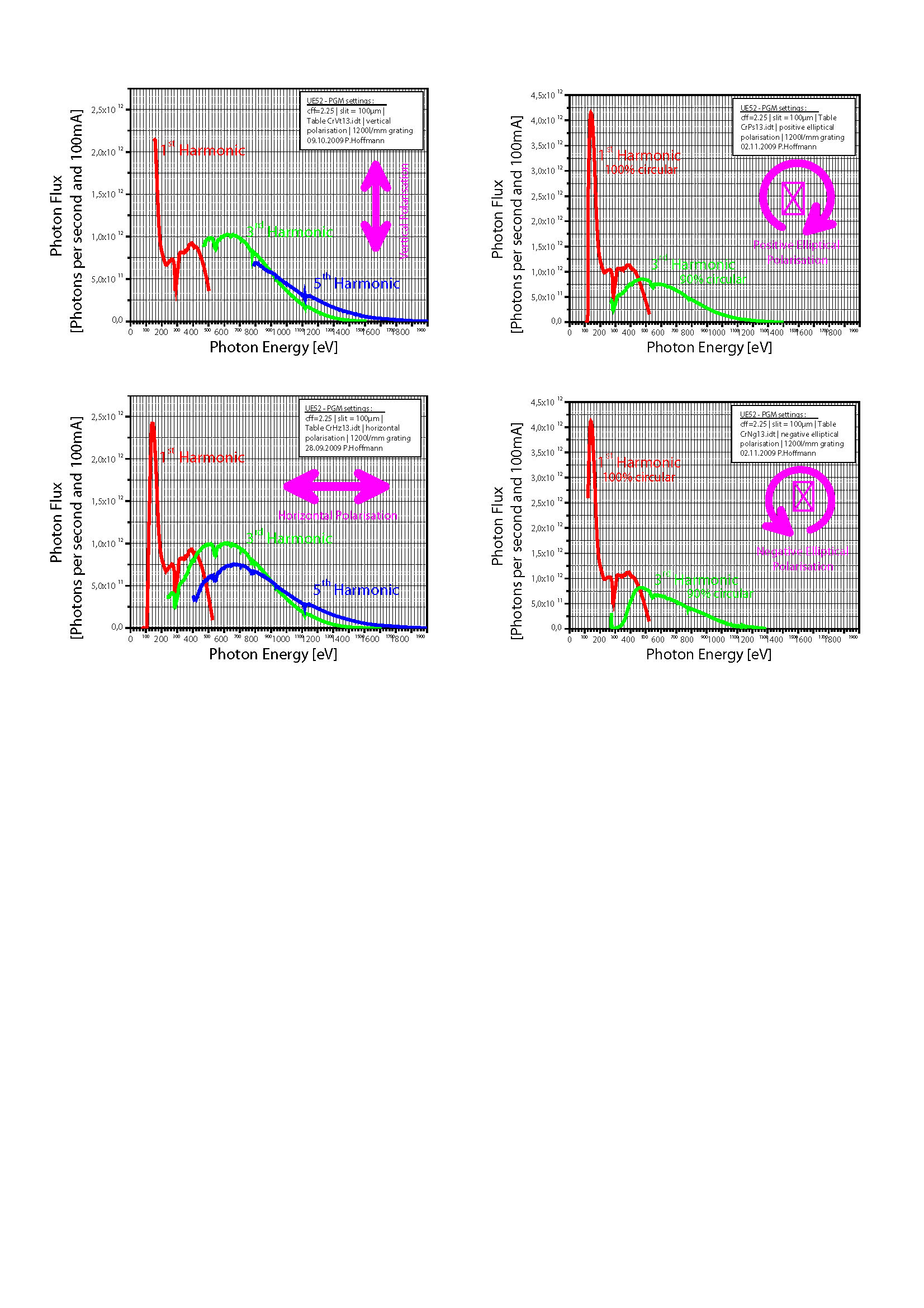

| Flux | 1012ph/s |
| Polarisation | variable |

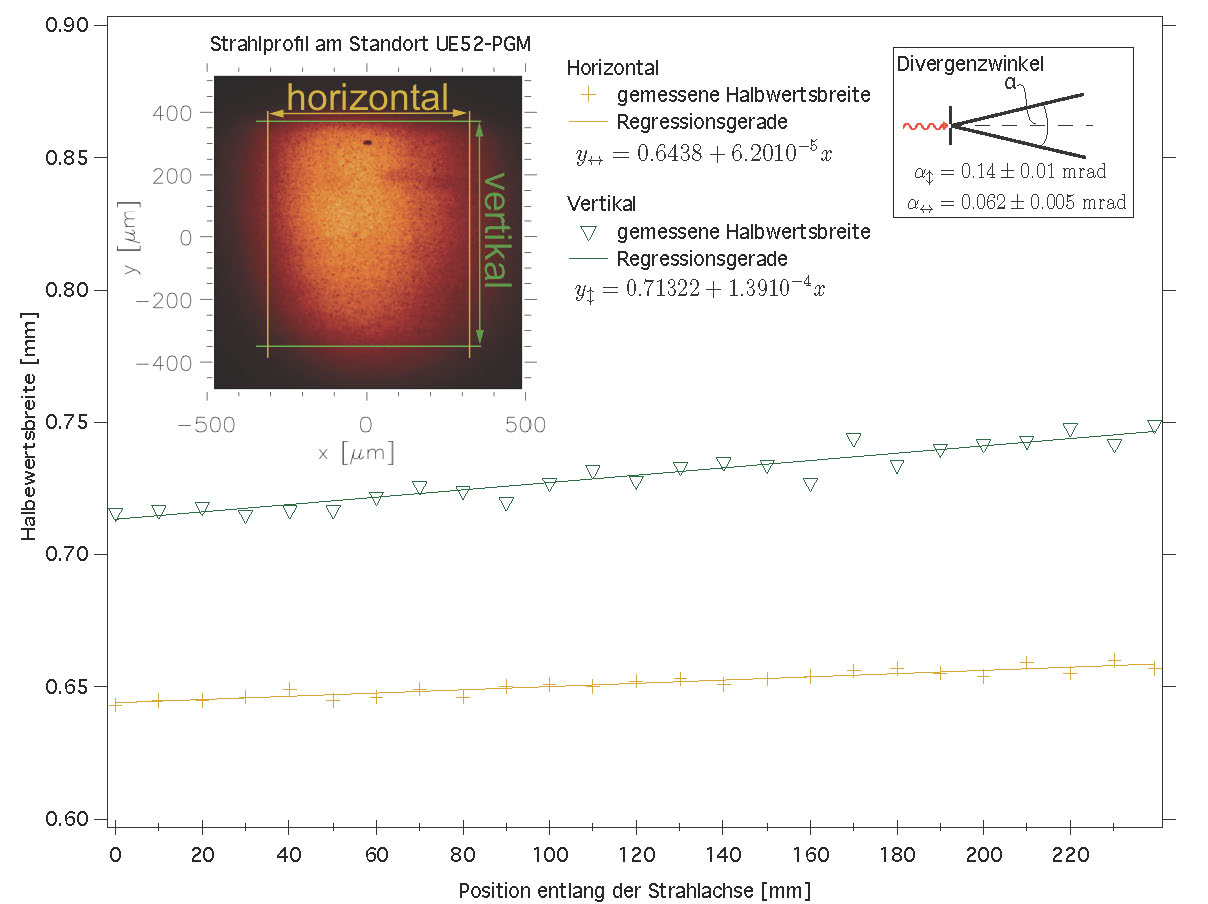

| Divergence horizontal | 0.8 mrad |
| Divergence vertical | 0.2 mrad |
| Focus size (hor. x vert.) | 200 μm x 100 μm |
| User endstation | not possible |
| Distance Focus/last valve | 1000 mm |
| Height Focus/floor level | 1412 mm |
| Beam availability | 12h/d |
| Phone | +49 30 8062 14692 |
