ENERGIZE is a collaboration between Helmholtz-Zentrum Berlin and the Humboldt Universität zu Berlin (HU). The aim of this project is to operate a beamline with a suitable end-station for materials science in the field of energy research. ENERGIZE is dedicated to research on hybrid materials and energy efficient technologies.
The dipole-PGM (plane grating mirror) beamline PM5 is optimized for the 30 eV to 1.5 keV energy range, which is ideally suited to perform ultraviolet photoelectron spectroscopy (UPS), X-ray photoelectron spectroscopy (XPS) and X-ray absorption spectroscopy (XAS) measurements. In addition, an attenuator system is installed, to allow measurements on radiation sensitive samples.
| Station data | |
|---|---|
| Temperature range | 300 K - 1100 K |
| Pressure range | 10-10 mbar working pressure in analysis chamber |
| Weitere Details | ENERGIZE |
| Beamline data | |
| Segment | L16 |
| Location (Pillar) | 1.1 |
| Source | D151 (Dipole) |
| Monochromator | PM5 |
| Energy range | 30 - 1700 eV |
| Energy resolution | E/ΔE=2888@500 eV (calculated) |

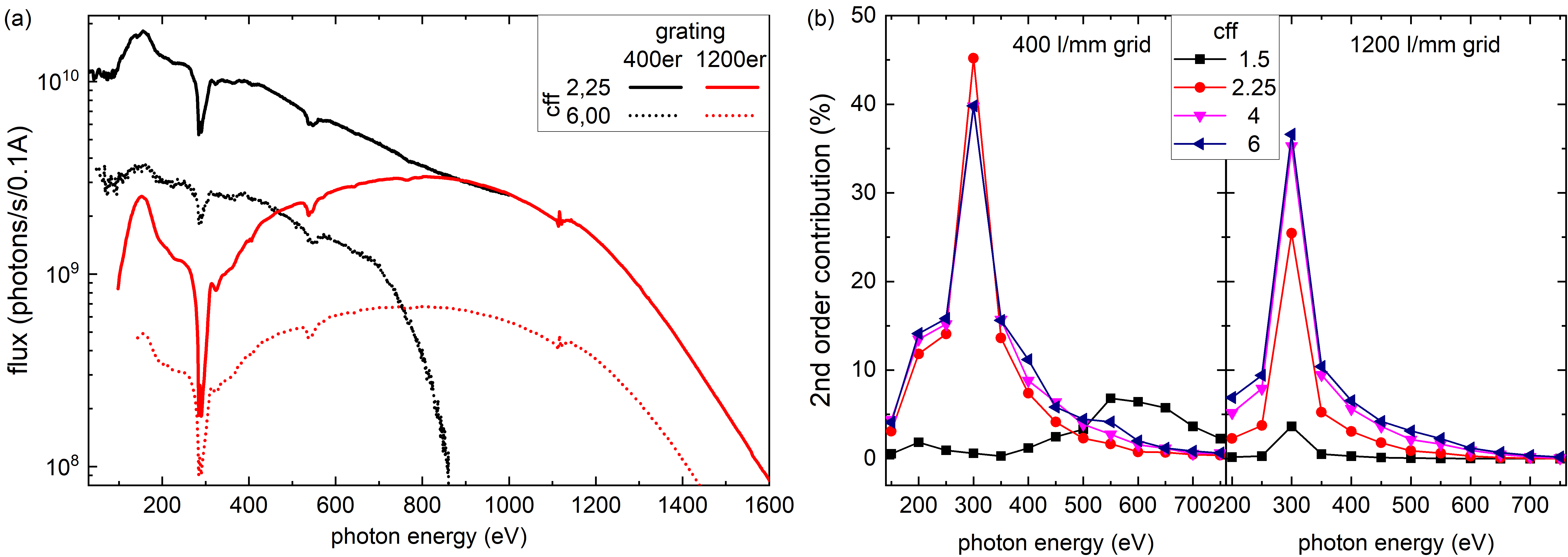

| Flux | ~7·109@500 photons/s/0.1 A/1 μm2 (calculated) |
| Polarisation | linear horizontal |
| Divergence horizontal | -- mrad |
| Divergence vertical | -- mrad |
| Focus size (hor. x vert.) | ~ 500x70 μm |
| User endstation | not possible |
| Distance Focus/last valve | -- mm |
| Height Focus/floor level | -- mm |
| Beam availability | 24h/d |
| Phone | +49 30 2093 82291 |
