UE52_PGM Ion trap
UE52_PGM Ion trap

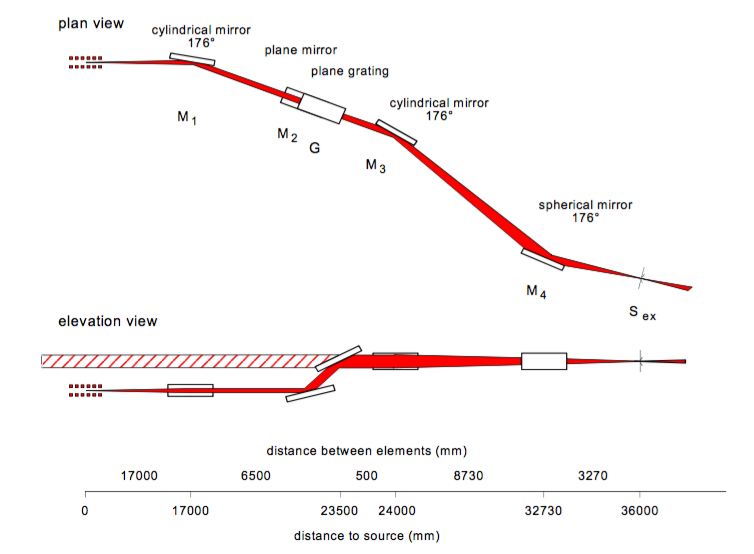

The UE52_PGM Ion trap is an undulator beamline with a plane-grating monochromator delivering soft X-ray radiation with variable polarization for the Ion Trap station.
| Station data | |
|---|---|
| Temperature range | 3 - 300 K |
| Pressure range | For details contact the scientist in charge. |
| More details | Ion Trap |
| Beamline data | |

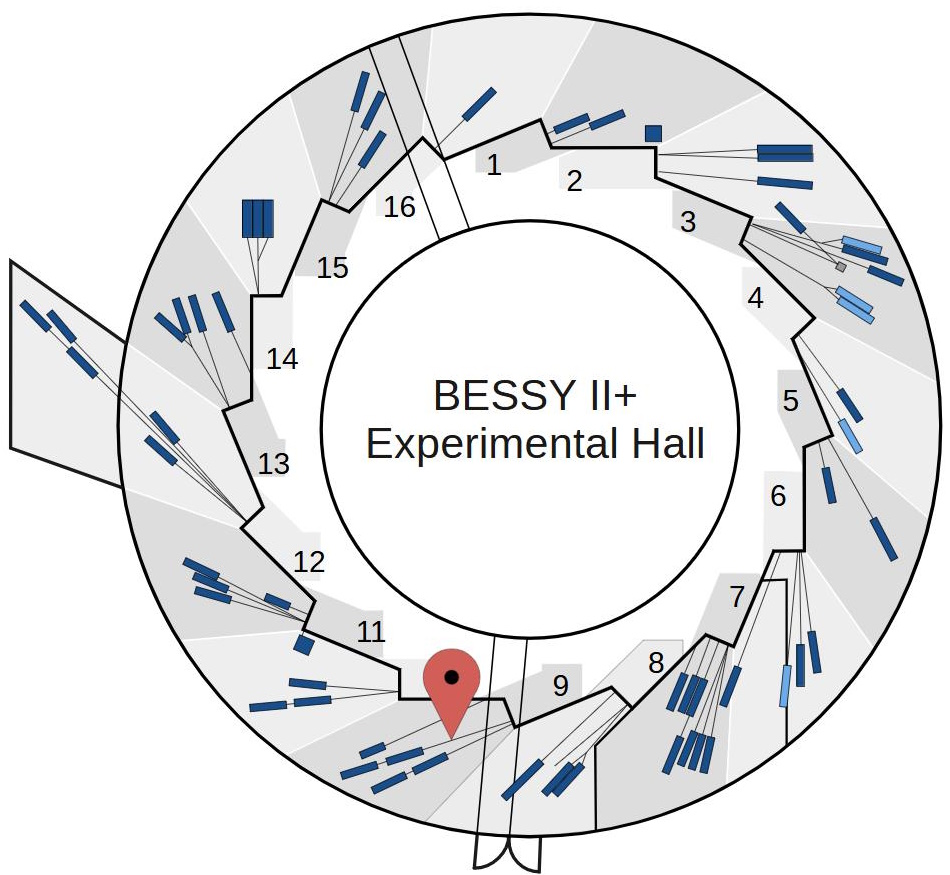

| Segment | H09 |
| Location (Pillar) | 11.1 |
| Source | UE52 (Elliptical Undulator) |
| Monochromator | PGM |
| Energy range | 120 - 1600 eV |
| Energy resolution | > 10000 at 400 eV |
| Flux | 1012 |
| Polarisation | variable |
| Divergence horizontal | 0.062 ± 0.005 mrad |
| Divergence vertical | 0.14 ± 0.01 mrad |
| Focus size (hor. x vert.) | beam profile 0.6 x 0.7 mm (at 200 micron exit slit) |
| User endstation | not possible |
| Distance Focus/last valve | (no focus) mm |
| Height Focus/floor level | 1412 mm |
| Beam availability | 12h/d |
| Phone | +49 30 8062 12137 |
The UE52_PGM Ion trap beamline is located downstream from the focus of the UE52_PGM CoESCA beamline and due to the low divergence of the x-ray beam, ideal conditions for the effective irradiation of the ion cloud in the Ion trap station are achieved.
